Filter Press

Filter Press

Custom-built

Filter Press for Sludge Dewatering

Dewater the sludge your wet scrubber produces.

Duty
Sludge dewatering
Build
Made to order
Pairs with
Wet scrubbers, washing lines
Request a quotation Ask on WhatsApp
  • CE certified · ISO 9001 manufacturer
  • 12-month warranty on main equipment
  • Custom size, material and colour

Overview

Filter press separates solids from liquid. It squeezes slurry into dry filter cakes for sludge, mining and chemical treatment. Auto version available.

  • This filter press achieves efficient solid-liquid separation for various slurries and sludge. Optimized filter plates and high-precision filter cloth trap fine particles and lower cake moisture. Stable pressure delivers consistent filtration, improves material recovery for wastewater, mining and chemical industries, cutting waste and boosting production efficiency.
  • Equipped with a reliable hydraulic system, the filter press provides strong squeezing force for deep sludge dewatering. It produces compact dry filter cakes with low moisture. Solid waste volume drops greatly to reduce transport and disposal costs. The controllable dewatering process meets strict environmental discharge and material reuse requirements.
  • This auto filter press supports automatic plate shifting, feeding, pressure holding and cake discharge. Full-cycle automation reduces labor needs and human errors. Fast filtration and discharge cycles raise continuous processing capacity. Its control system adjusts parameters for different materials to maintain stable long-time operation.
  • The filter press adopts thick high-strength steel frames and anti-corrosion filter plates with good pressure and wear resistance. Key hydraulic and electric parts use quality components with low failure rates. Simple structure allows easy disassembly and maintenance, cutting downtime and later service costs for long-term industrial use.
  • This filter press works for sludge dewatering, mining slurry, chemical, food and construction wastewater. It separates wastewater and residues efficiently for filter cake reuse and clean water discharge. It meets international environmental standards to help enterprises reduce pollution and realize energy saving and resource recovery.

Key advantages

  • Low Moisture Filter Cake

    Filter press squeezes slurry to form dry solid cake and lower moisture greatly.

  • Efficient Solid Liquid Separation

    It separates solid particles from wastewater to get clear filtrate quickly.

  • Completes the wet line

    Sized to the sludge output of the scrubber it serves.

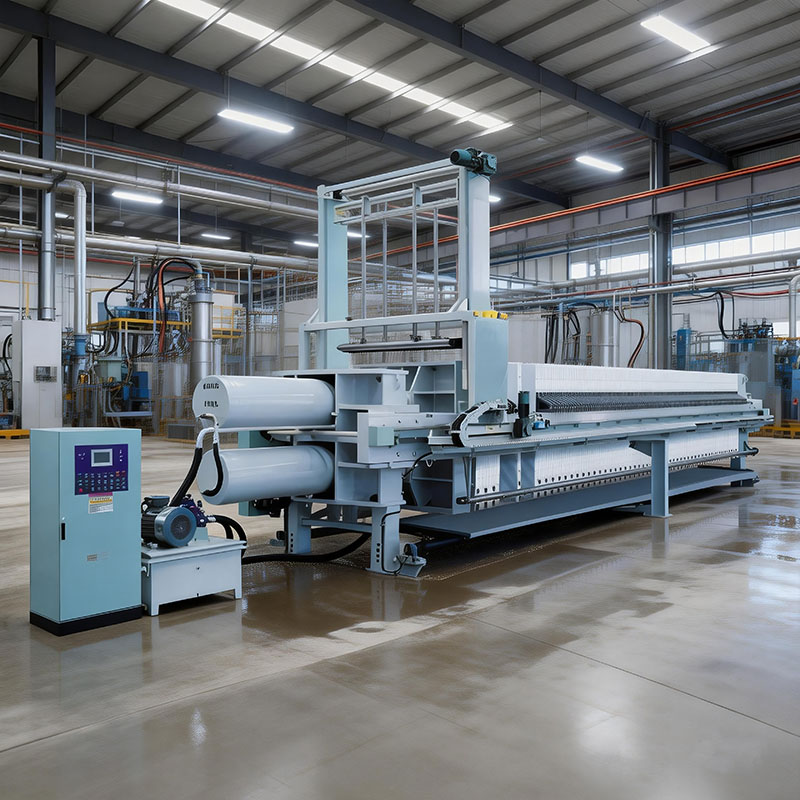

See it running

Technical data

Model specifications

Full range as manufactured. Sizes and configurations outside this table are built to order.

Model Filter Area Chamber Volume Plate Size mm Plate Thickness Filter Plates Filtering Chamber Plates Filter Cake Thickness Machine Size mm Motor Power Filter Chamber Pressure MPa Weight
YT-B2/500-5 2m² 30L 520×520 30mm 4 5 30mm 1790×800×880 1.5kW 0.6 / 0.8 / 1.0 420kg
YT-B4/500-10 4m² 60L 520×520 30mm 9 10 30mm 2090×800×880 1.5kW — 480kg
YT-B6/500-15 6m² 80L 520×520 30mm 14 15 30mm 2390×800×880 1.5kW — 540kg
YT-B8/500-20 8m² 120L 520×520 30mm 19 20 30mm 2690×800×880 1.5kW — 590kg
YT-B10/500-25 10m² 150L 520×520 30mm 24 25 30mm 2990×800×880 1.5kW — 640kg
YT-B12/500-30 12m² 180L 520×520 30mm 29 30 30mm 3290×800×880 1.5kW — 700kg
YT-B20/700-25 20m² 320L 710×710 32mm 24 25 32mm 3370×960×1195 3kW — 1320kg
YT-B30/700-38 30m² 480L 710×710 32mm 37 38 32mm 4140×960×1195 3kW — 1620kg
YT-B40/700-50 40m² 640L 710×710 32mm 49 50 32mm 4910×960×1195 3kW — 1800kg

  • YT-B2/500-5

    Filter Area 2m²

    Chamber Volume 30L

    Plate Size 520×520 mm

    Plate Thickness 30mm

    Filter Plates 4

    Filtering Chamber Plates 5

    Filter Cake Thickness 30mm

    Machine Size 1790×800×880 mm

    Motor Power 1.5kW

    Filter Chamber Pressure 0.6 / 0.8 / 1.0 MPa

    Weight 420kg

  • YT-B4/500-10

    Filter Area 4m²

    Chamber Volume 60L

    Plate Size 520×520 mm

    Plate Thickness 30mm

    Filter Plates 9

    Filtering Chamber Plates 10

    Filter Cake Thickness 30mm

    Machine Size 2090×800×880 mm

    Motor Power 1.5kW

    Filter Chamber Pressure — MPa

    Weight 480kg

  • YT-B6/500-15

    Filter Area 6m²

    Chamber Volume 80L

    Plate Size 520×520 mm

    Plate Thickness 30mm

    Filter Plates 14

    Filtering Chamber Plates 15

    Filter Cake Thickness 30mm

    Machine Size 2390×800×880 mm

    Motor Power 1.5kW

    Filter Chamber Pressure — MPa

    Weight 540kg

  • YT-B8/500-20

    Filter Area 8m²

    Chamber Volume 120L

    Plate Size 520×520 mm

    Plate Thickness 30mm

    Filter Plates 19

    Filtering Chamber Plates 20

    Filter Cake Thickness 30mm

    Machine Size 2690×800×880 mm

    Motor Power 1.5kW

    Filter Chamber Pressure — MPa

    Weight 590kg

  • YT-B10/500-25

    Filter Area 10m²

    Chamber Volume 150L

    Plate Size 520×520 mm

    Plate Thickness 30mm

    Filter Plates 24

    Filtering Chamber Plates 25

    Filter Cake Thickness 30mm

    Machine Size 2990×800×880 mm

    Motor Power 1.5kW

    Filter Chamber Pressure — MPa

    Weight 640kg

  • YT-B12/500-30

    Filter Area 12m²

    Chamber Volume 180L

    Plate Size 520×520 mm

    Plate Thickness 30mm

    Filter Plates 29

    Filtering Chamber Plates 30

    Filter Cake Thickness 30mm

    Machine Size 3290×800×880 mm

    Motor Power 1.5kW

    Filter Chamber Pressure — MPa

    Weight 700kg

  • YT-B20/700-25

    Filter Area 20m²

    Chamber Volume 320L

    Plate Size 710×710 mm

    Plate Thickness 32mm

    Filter Plates 24

    Filtering Chamber Plates 25

    Filter Cake Thickness 32mm

    Machine Size 3370×960×1195 mm

    Motor Power 3kW

    Filter Chamber Pressure — MPa

    Weight 1320kg

  • YT-B30/700-38

    Filter Area 30m²

    Chamber Volume 480L

    Plate Size 710×710 mm

    Plate Thickness 32mm

    Filter Plates 37

    Filtering Chamber Plates 38

    Filter Cake Thickness 32mm

    Machine Size 4140×960×1195 mm

    Motor Power 3kW

    Filter Chamber Pressure — MPa

    Weight 1620kg

  • YT-B40/700-50

    Filter Area 40m²

    Chamber Volume 640L

    Plate Size 710×710 mm

    Plate Thickness 32mm

    Filter Plates 49

    Filtering Chamber Plates 50

    Filter Cake Thickness 32mm

    Machine Size 4910×960×1195 mm

    Motor Power 3kW

    Filter Chamber Pressure — MPa

    Weight 1800kg

Component layout

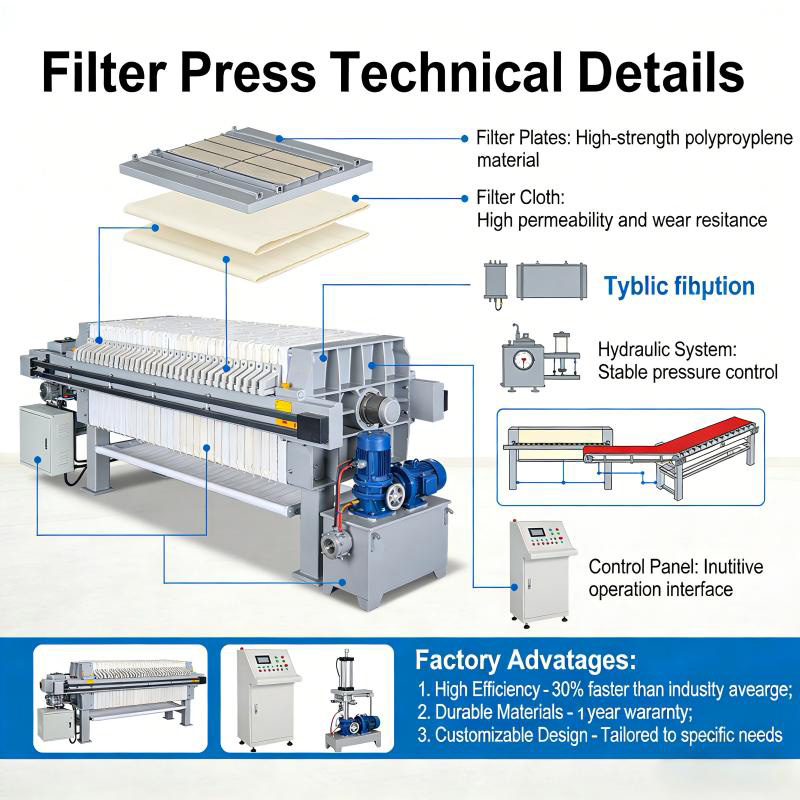

Filter Press labelled component diagram

Need a CAD file or a general-arrangement drawing for your bid documents? Request it here — we send them on request.

Questions

What buyers ask before ordering

If your question is not here, ask it in the form — an engineer answers, not a salesperson.

  • What materials can this filter press handle?

    It handles sludge, mining slurry, chemical and construction wastewater for solid-liquid separation.

  • What is the working principle of the filter press?

    Slurry enters filter chambers. Solids stay to form cakes and clear liquid flows out through filter cloth.

  • How about the quality and after sales service?

    We use reliable components. We provide technical support and after-sales guidance.

Request a quotation — Filter Press

Tell us the dust and the air volume and we will size the unit for you. No obligation.
