Bucket Elevator
YT-D/YT-TH/YT-NE
Heavy Duty Bucket Elevator for Bulk Solids
Bucket elevator transports bulk materials vertically. It features stable running and low maintenance.
- YT-D160
- 600*200mm
- YT-TH315
- 1050*571mm
- YT-NE15
- 1144*544mm
- CE certified · ISO 9001 manufacturer
- 12-month warranty on main equipment
- Custom size, material and colour
Overview
Bucket elevator transports bulk materials vertically. It features stable running and low maintenance.
- Our bucket elevator realizes continuous vertical transportation of various bulk solids including grain, powder, ore and cement. Adopted precise chain or belt driving system, it keeps steady material feeding and discharging without spillage. The sealed housing reduces dust emission to meet environmental requirements. It can adapt to different lifting heights and handle materials with different particle sizes reliably.
- Heavy duty welded steel frame and thickened buckets enhance the overall mechanical strength of the bucket elevator. Wear-resistant parts are applied at friction positions to extend service life, even under long-time heavy load operation. The whole structure is compact and occupies little floor space. It can withstand abrasive materials and tough working conditions in mining and cement industries.
- Designed with convenient access covers for fast inspection and replacement of worn buckets, chains or belts. Reasonable tension adjustment structure helps avoid slipping and abnormal vibration. The machine requires simple daily maintenance and fewer spare parts. It greatly cuts downtime and reduces your operating cost during continuous production.
- We supply chain type and belt type bucket elevators with customizable capacity, lifting height and bucket style. Material contact parts can be made of carbon steel or stainless steel to fit food, chemical or mining sectors. We support OEM & ODM according to your site layout and material characteristics. Custom solutions match your unique production demands perfectly.
- Multiple safety protections are equipped on our bucket elevator to prevent overload, blockage and chain slack. Overload alarm and anti-backward device avoid material backflow and equipment damage. Smooth running reduces noise level. Every unit is strictly tested before delivery to guarantee stable and safe long-term operation for your production line.
Key advantages
-
Vertical Chain Bucket Elevator for Cement Ore
Vertical chain bucket elevator with dust sealing and anti-backward device. Heavy duty, custom height & capacity.
-
Heavy Duty Belt Bucket Elevator for Grain Powder
Belt bucket elevator for grain and powder. Low spillage, easy maintenance, customizable buckets.
-
Custom Vertical Bucket Elevator Carbon Stainless Steel
Custom bucket elevator in carbon or stainless steel. Fit food, chemical, mining. Stable operation, OEM supported.
See it running
Technical data
Model specifications
Full range as manufactured. Sizes and configurations outside this table are built to order.
| Model | Dimension | Transport capacity | Material particle size | Power |
|---|---|---|---|---|
| YT-D160 | 600×200mm | 3.1-8.0 m³/h | <25 mm | 2.2 kW |
| YT-D250 | 800×265mm | 11.8-21.6 m³/h | <35 mm | 3.0-7.5 kW |
| YT-D350 | 900×325mm | 25-42 m³/h | <45 mm | 5.5-11 kW |
| YT-D450 | 720×385mm | 48-69.5 m³/h | <55 mm | 7.5-11 kW |
| YT-TH315 | 1050×571mm | 35-59 m³/h | <35 mm | 5.5-15 kW |
| YT-TH400 | 1200×658mm | 58-94 m³/h | <40 mm | 11-22 kW |
| YT-TH500 | 1080×788mm | 73-118 m³/h | <50 mm | 15-30 kW |
| YT-TH630 | 1200×981mm | 114-185 m³/h | <60 mm | 18.5-37 kW |
| YT-NE15 | 1144×544mm | 15 m³/h | <40 mm | * |
| YT-NE30 | 1334×594mm | 32 m³/h | <50 mm | * |
| YT-NE50 | 1334×744mm | 60 m³/h | <50 mm | * |
| YT-NE100 | 1566×916mm | 110 m³/h | <70 mm | * |
-
YT-D160
Dimension 600×200mm
Transport capacity 3.1-8.0 m³/h
Material particle size <25 mm
Power 2.2 kW
-
YT-D250
Dimension 800×265mm
Transport capacity 11.8-21.6 m³/h
Material particle size <35 mm
Power 3.0-7.5 kW
-
YT-D350
Dimension 900×325mm
Transport capacity 25-42 m³/h
Material particle size <45 mm
Power 5.5-11 kW
-
YT-D450
Dimension 720×385mm
Transport capacity 48-69.5 m³/h
Material particle size <55 mm
Power 7.5-11 kW
-
YT-TH315
Dimension 1050×571mm
Transport capacity 35-59 m³/h
Material particle size <35 mm
Power 5.5-15 kW
-
YT-TH400
Dimension 1200×658mm
Transport capacity 58-94 m³/h
Material particle size <40 mm
Power 11-22 kW
-
YT-TH500
Dimension 1080×788mm
Transport capacity 73-118 m³/h
Material particle size <50 mm
Power 15-30 kW
-
YT-TH630
Dimension 1200×981mm
Transport capacity 114-185 m³/h
Material particle size <60 mm
Power 18.5-37 kW
-
YT-NE15
Dimension 1144×544mm
Transport capacity 15 m³/h
Material particle size <40 mm
Power *
-
YT-NE30
Dimension 1334×594mm
Transport capacity 32 m³/h
Material particle size <50 mm
Power *
-
YT-NE50
Dimension 1334×744mm
Transport capacity 60 m³/h
Material particle size <50 mm
Power *
-
YT-NE100
Dimension 1566×916mm
Transport capacity 110 m³/h
Material particle size <70 mm
Power *

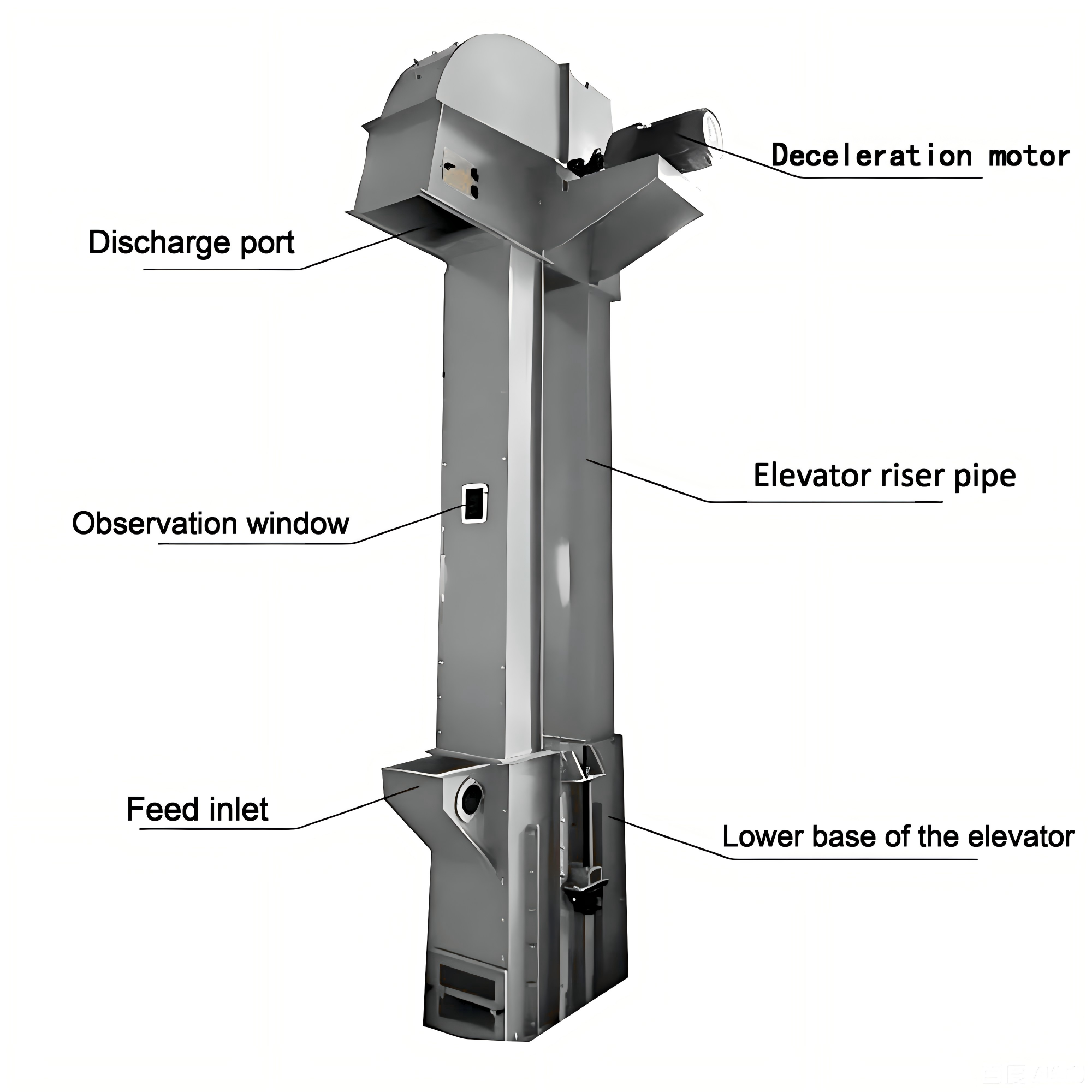

Component layout
Need a CAD file or a general-arrangement drawing for your bid documents? Request it here — we send them on request.
Questions
What buyers ask before ordering
If your question is not here, ask it in the form — an engineer answers, not a salesperson.
-
Is your bucket elevator suitable for mining and cement plants?
Yes. Compact structure, wear-resistant parts for long service life.
-
Can you make custom bucket elevator with stainless steel?
Yes. Carbon steel or stainless steel optional. OEM available for multiple industries.
-
What lifting height can your bucket elevator reach?
Custom lifting height available to match your site requirement.
-
How about the daily maintenance of bucket elevator?
Simple maintenance, less spare parts and low running cost.
