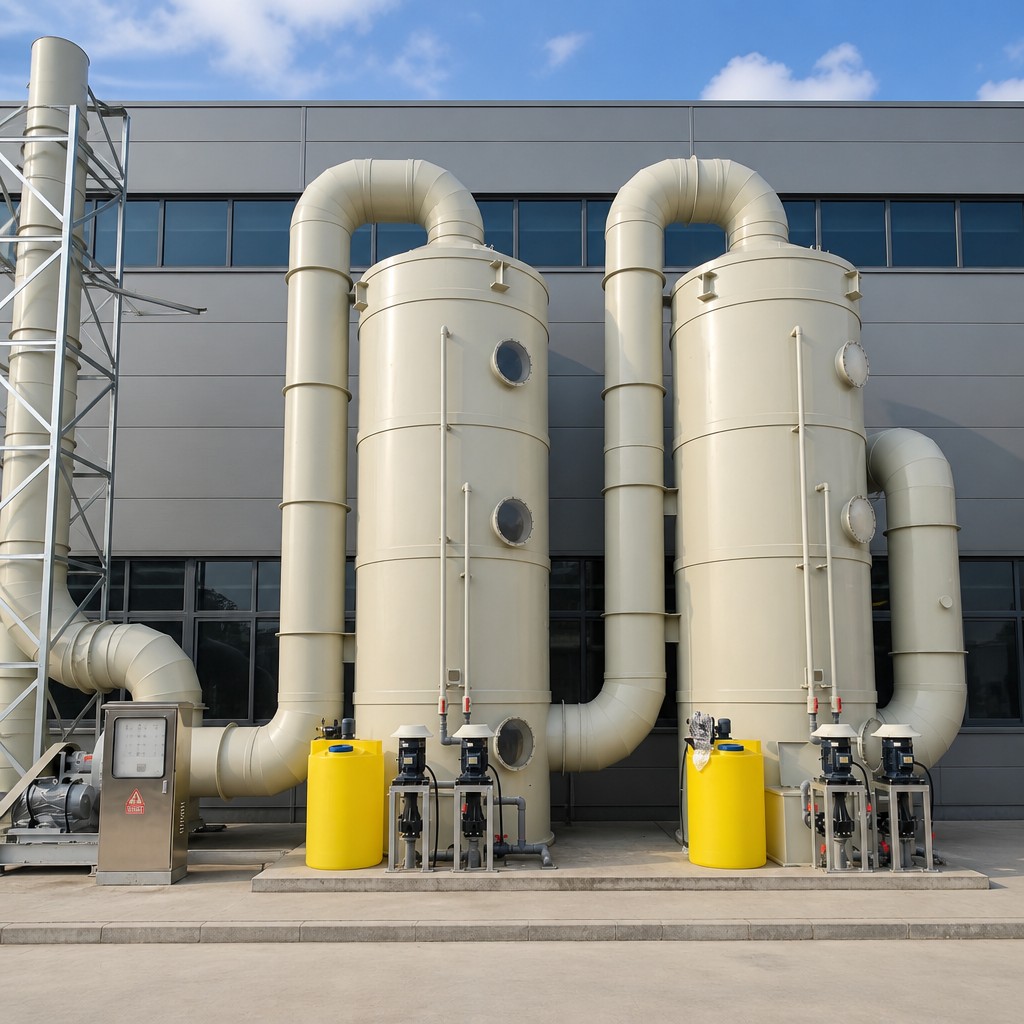

Wet Scrubber
YT-04PL
Effective Exhaust Scrubbing Solutions for Industrial Applications
For acid mist, odour and soluble gas that a dry filter cannot touch.
- Model series
- YT-04PL1200 – YT-04PL2500
- Air volume
- 5,000 – 25,000 m³/h
- Water pump
- 2.2 – 7.5 kW
- Materials
- PP, FRP, stainless steel, mild steel
- Configuration
- Two-layer spray, three/four-layer packing
- Typical use
- Acid mist, odour, soluble gases
- CE certified · ISO 9001 manufacturer
- 12-month warranty on main equipment
- Custom size, material and colour
Overview
A packed spray tower that washes the exhaust stream. Where the pollutant is a gas, a mist or a hot sticky vapour, a fabric filter is the wrong tool — a scrubber absorbs it into the liquid phase instead. Available in PP, FRP, stainless or mild steel to match your chemistry.
- Multi-layer spray and packing. Nozzles distribute washing liquid over layers of packing material and create a large wetted surface inside the tower. Rising gas meets the descending liquid, and soluble pollutants and dust are washed from the stream. Distribution plates spread the gas evenly across the whole column, so the whole section works as one.
- Water circulation and simple upkeep. A rectangular tank stores the washing liquid and returns it to the spray system in a continuous loop, allowing long running periods with little attention. Sight glasses show the spray and packing state during operation, while sealed access doors and a caged ladder give safe entry for inspection and packing replacement.
- Built around your working condition. Colour can be matched to your workshop or brand, voltage selected for the local supply, and dimensions planned for the space you have. Your logo can be applied to the tower, and air volume is arranged for the exhaust flow of the process, so a single unit can be prepared for a specific line rather than being limited to a standard catalogue configuration.
- Applications and factory support. The wet scrubber is used for acid mist from electroplating, chemical process exhaust, fumes from metal surface treatment, electronics plant exhaust, laboratory fume exhaust and odour control at wastewater plants. As a manufacturer we confirm the working condition and specification with you before production, so the delivered unit matches the duty it has to handle on site.
Key advantages
-
Removes what filters cannot
Acid mist, ammonia, odour and soluble gases pass straight through a fabric filter but are absorbed in a scrubber.
-
Material matched to chemistry
PP and FRP for corrosive duty, stainless for high temperature and hygiene, mild steel where chemistry allows.
-
Handles hot, wet, sticky exhaust
Moisture and condensation ruin a dry filter. In a scrubber they are part of the process.
-
Multi-layer contact
Two spray layers plus three or four packing layers give the gas repeated contact with the liquid.
See it running
Technical data
Model specifications
Full range as manufactured. Sizes and configurations outside this table are built to order.
| Model | Fan Power | Air Volume m³/h | Dimensions mm | Water Pump | Configuration |
|---|---|---|---|---|---|
| YT-04PL1200 | 5.5kW | 5000 | 1200*3500 | 2.2 kW | Two-layer spray and three-layer packing |
| YT-04PL1500 | 11kW | 10000 | 1500*3500 | 2.2 kW | Two-layer spray and three-layer packing |
| YT-04PL1800 | 18.5kW | 15000 | 1800*4500 | 3 kW | Two-layer spray and three-layer packing |
| YT-04PL2000 | 30kW | 20000 | 2000*6000 | 5.5 kW | Two-layer spray and three-layer packing |
| YT-04PL2500 | 37kW | 25000 | 2000*7500 | 7.5 kW | Three-layer spray and four-layer packing |
-
YT-04PL1200
Fan Power 5.5kW
Air Volume 5000 m³/h
Dimensions 1200*3500 mm
Water Pump 2.2 kW
Configuration Two-layer spray and three-layer packing
-
YT-04PL1500
Fan Power 11kW
Air Volume 10000 m³/h
Dimensions 1500*3500 mm
Water Pump 2.2 kW
Configuration Two-layer spray and three-layer packing
-
YT-04PL1800
Fan Power 18.5kW
Air Volume 15000 m³/h
Dimensions 1800*4500 mm
Water Pump 3 kW
Configuration Two-layer spray and three-layer packing
-
YT-04PL2000
Fan Power 30kW
Air Volume 20000 m³/h
Dimensions 2000*6000 mm
Water Pump 5.5 kW
Configuration Two-layer spray and three-layer packing
-
YT-04PL2500
Fan Power 37kW
Air Volume 25000 m³/h
Dimensions 2000*7500 mm
Water Pump 7.5 kW
Configuration Three-layer spray and four-layer packing
Component layout
Need a CAD file or a general-arrangement drawing for your bid documents? Request it here — we send them on request.
Questions
What buyers ask before ordering
If your question is not here, ask it in the form — an engineer answers, not a salesperson.
-
Which material should I specify?
It depends on what you are scrubbing. PP and FRP suit acids and most corrosive duty; stainless suits higher temperatures. Send us the gas composition, concentration and temperature and we will recommend the material.
-
How much water does it consume?
The liquid is recirculated, so consumption is limited to evaporation and periodic blowdown. Actual figures depend on your gas temperature and loading.
-
Can it be combined with dry filtration?
Yes. A common arrangement is a dry collector for particulate followed by a scrubber for the gas phase, and sometimes an activated carbon stage after that.
-
Do you supply the dosing system?
We can quote the pH control and chemical dosing package with the tower. Tell us the target chemistry.
-
What about the waste water?
Blowdown handling depends on your local discharge rules and what you are scrubbing. We will tell you what the tower produces so you can plan the treatment.
